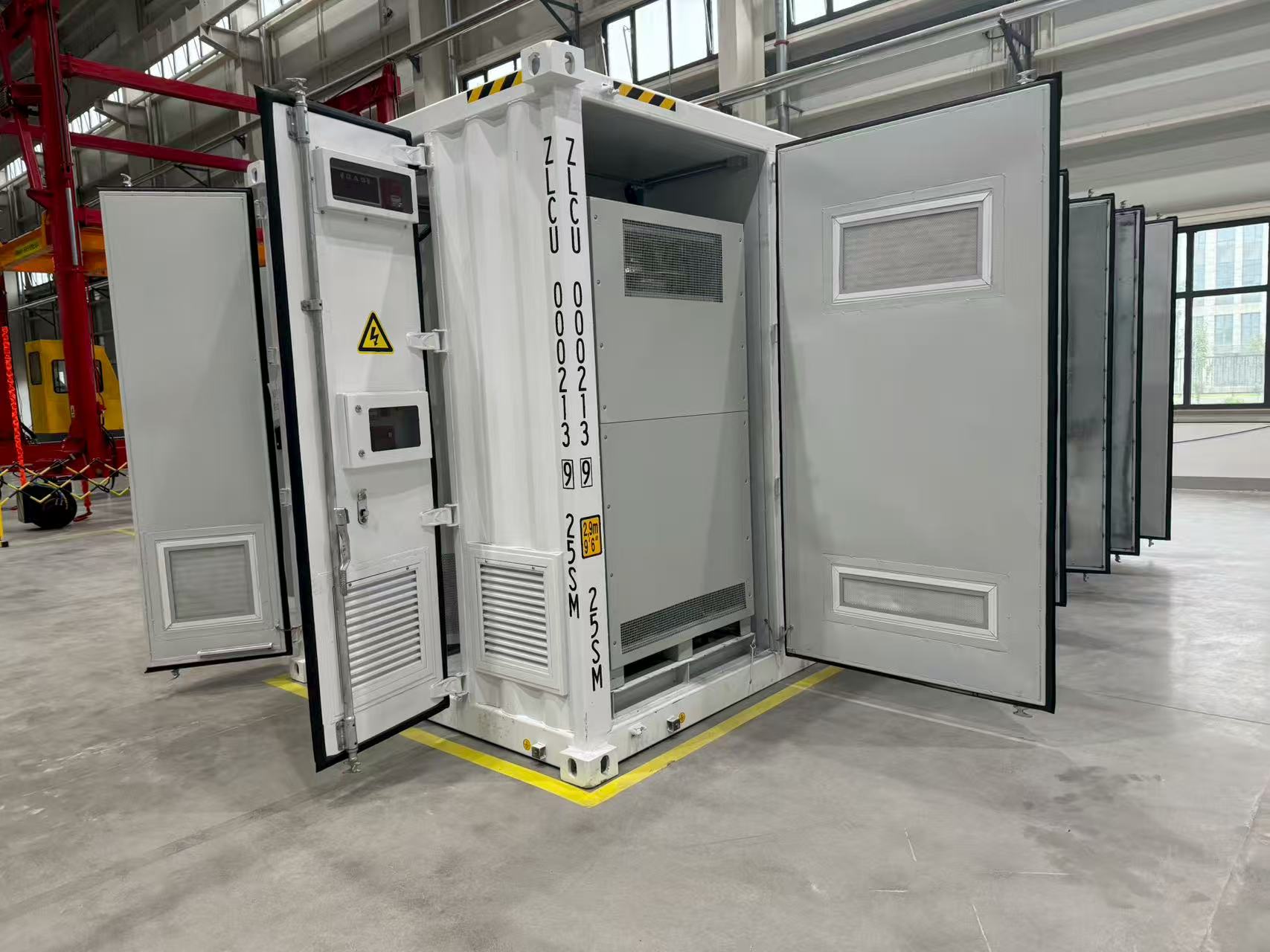

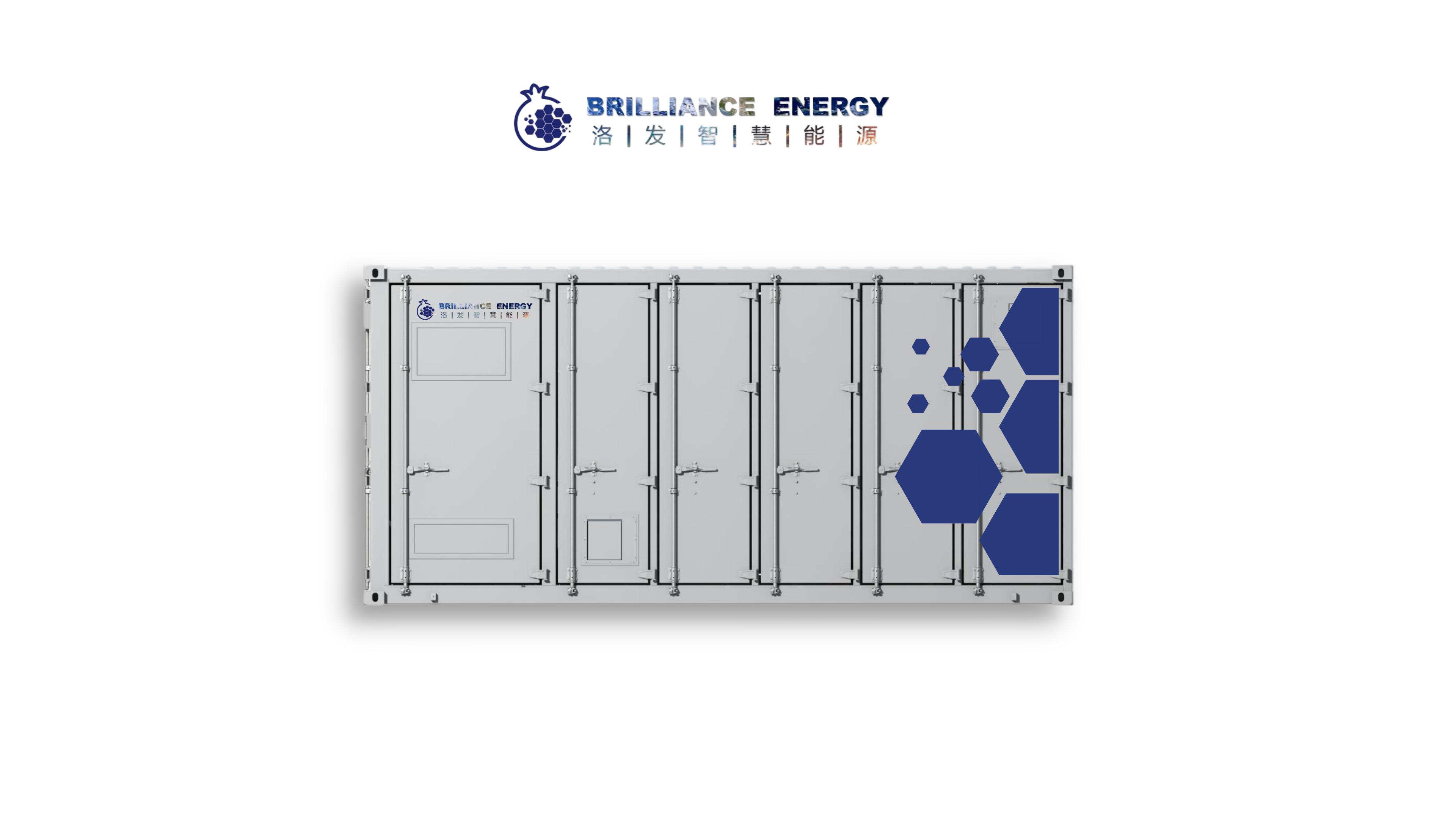

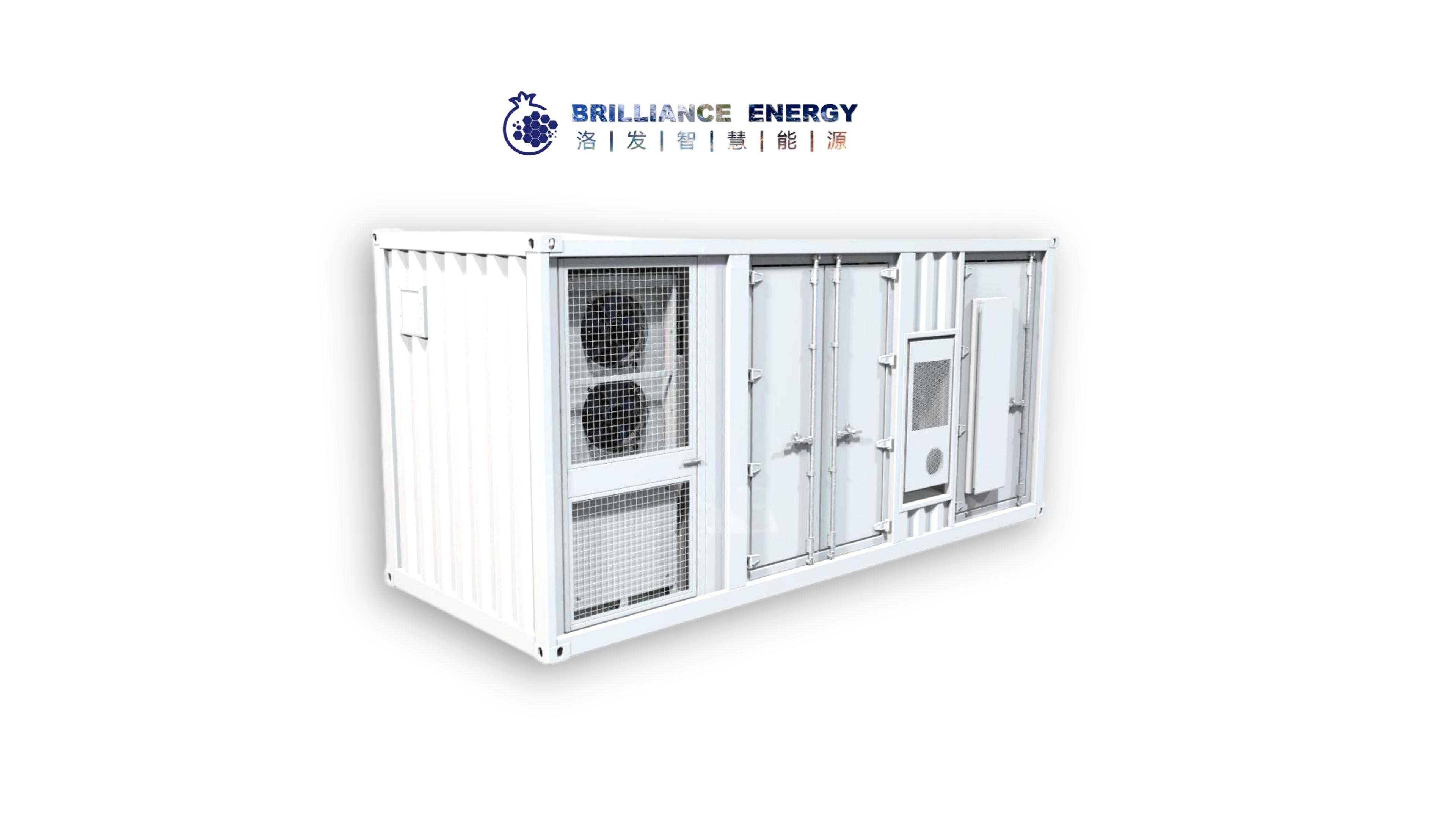

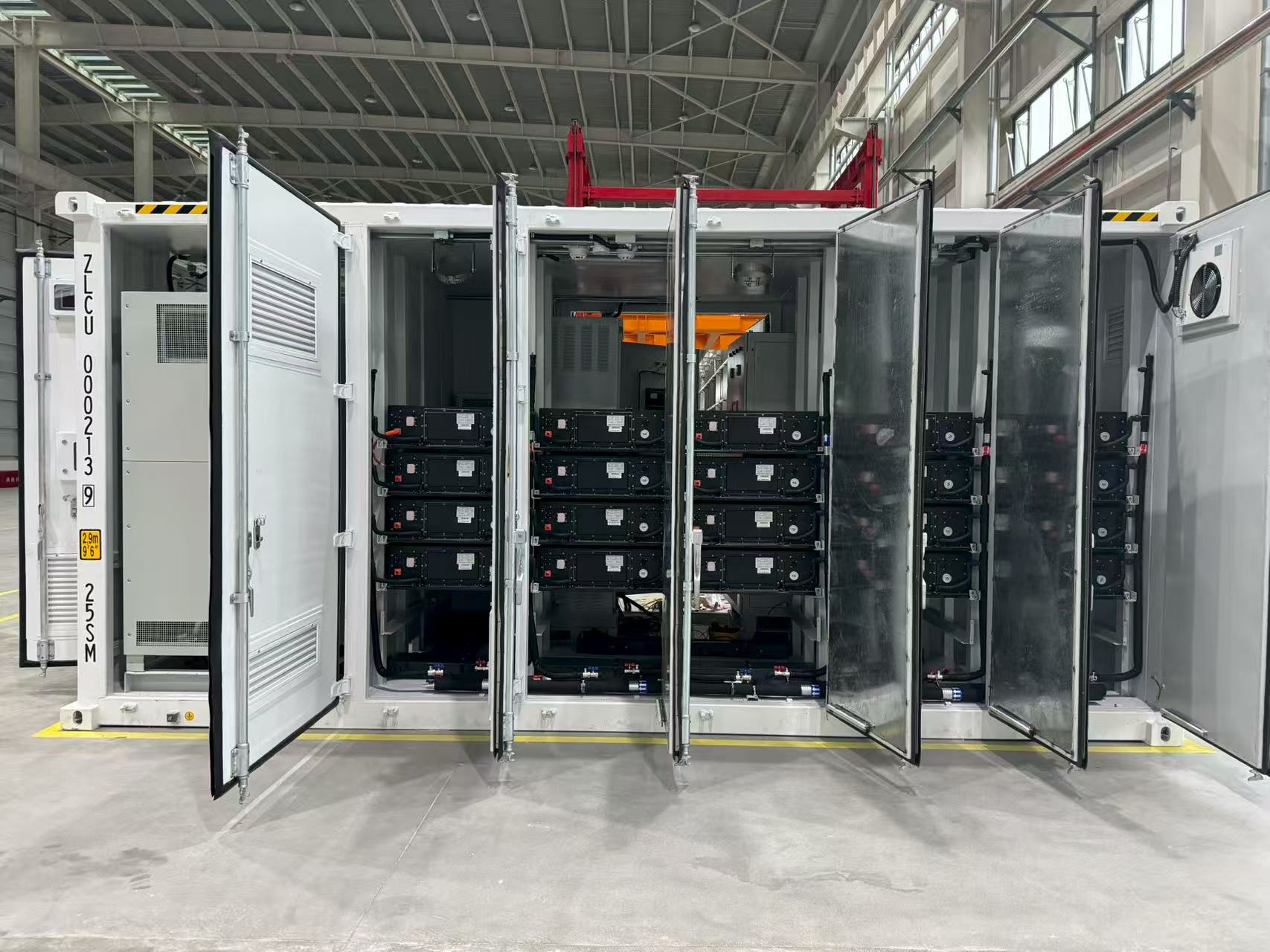

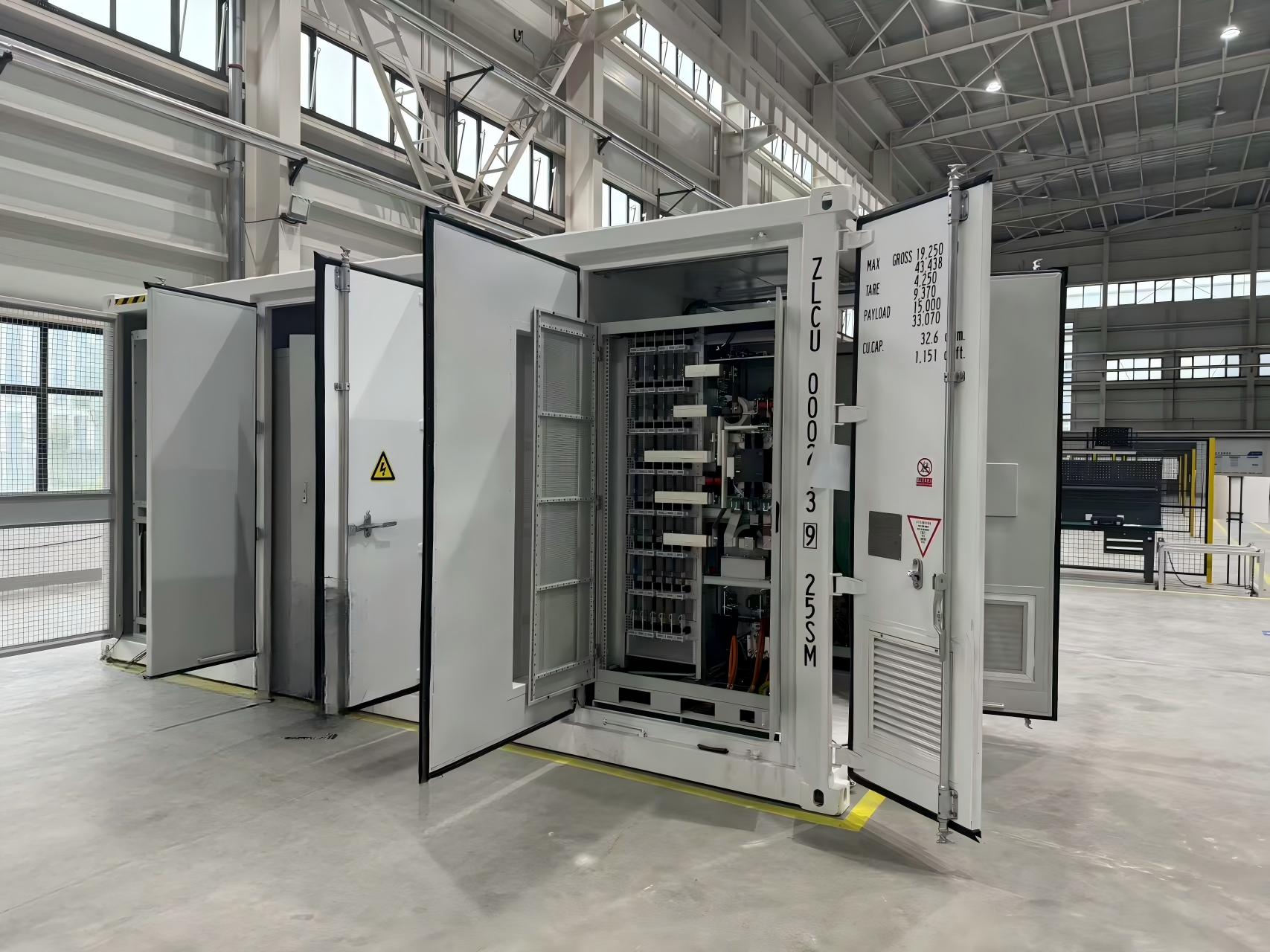

Containerized Energy Storage System
Highlights:
- Plug-and-Play
- Standard 20ft container, integrated EMS/BMS/cooling/fire protection.
- High ROI
- 4-5 years payback via peak-valley arbitrage + demand management.
- Ultra-Safe
- LFP cells, ≥8,000 cycles, triple fire protection (aerosol + liquid cooling + isolation).
- Grid-Friendly
- Supports PV/wind/diesel hybrid systems, ancillary services (PFC, demand response).
Technical Specifications
|
Item |
Specification |
|
Model |
XC-LCC/1045/A |
|
Cell Specification |
3.2V/314Ah |
|
Max Charge/Discharge Power |
0.5C |
|
System Configuration |
1P208S×5 |
|
Rated Energy |
1.045 MWh |
|
Rated Voltage |
665.6V |
|
Rated Output Power |
500kW |
|
Voltage Range |
582.4~748.8V |
|
Cooling Method |
Liquid Cooling |
|
Ambient Temperature |
-30~50℃ |
|
Ambient Humidity |
≤85%RH (non-condensing) |
|
Operating Altitude |
≤2000m (derated above 2000m) |
|
Noise Level |
≤80dB(A) |
|
Protection Rating |
IP54 |
|
Storage Temperature |
-20~45℃ (1 month) |
|
|
0~35℃ (6 months) |
|
Fire Protection System |
Integrated detection (temperature/smoke/composite) + aerosol fire suppression + audible/visual alarms |
|
Corrosion Resistance |
C4 |
|
Seismic Resistance |
Grade 7 |
|
Communication Interfaces |
Ethernet/CAN/RS485 |
|
Dimensions (W×D×H) |
2438mm×6058mm×2896mm |
|
Weight |
15 tons |
|
Design Life |
20 years |
